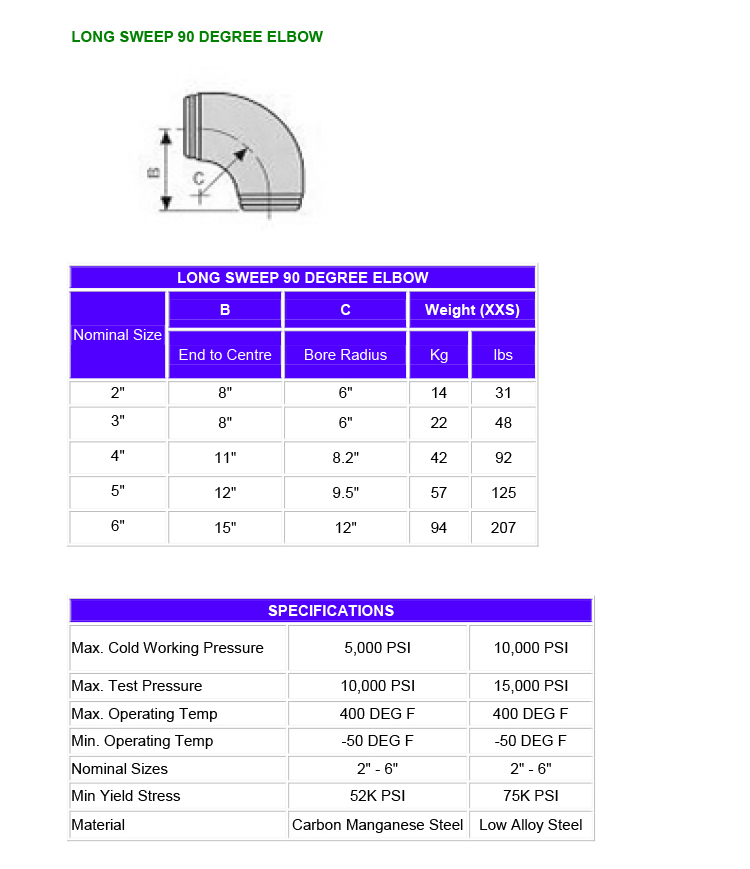

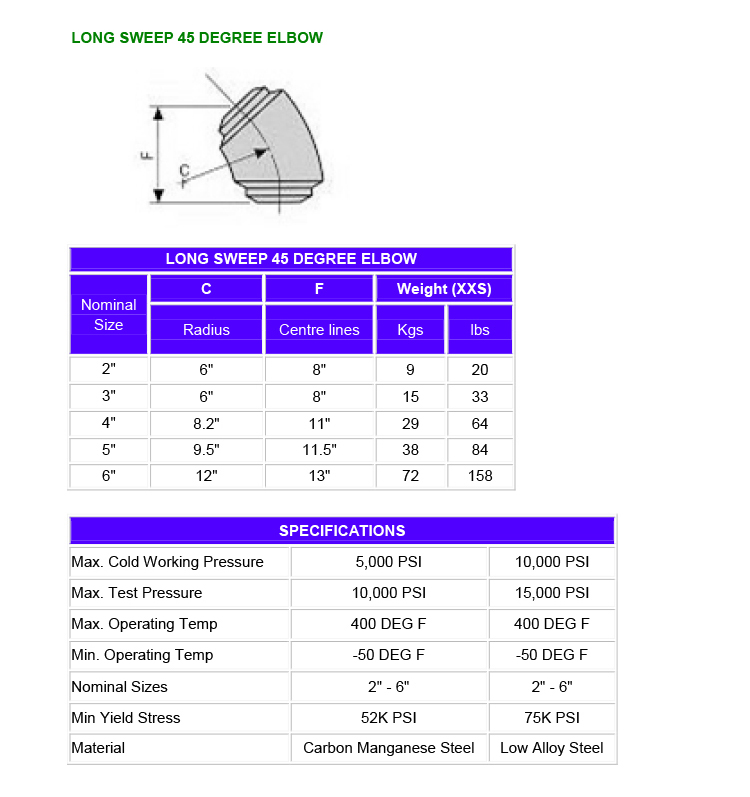

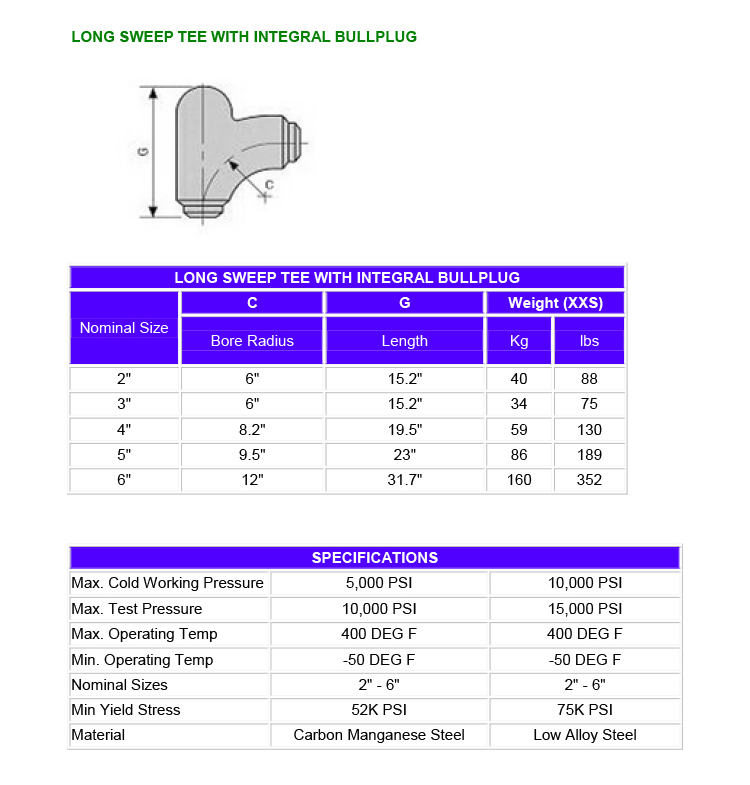

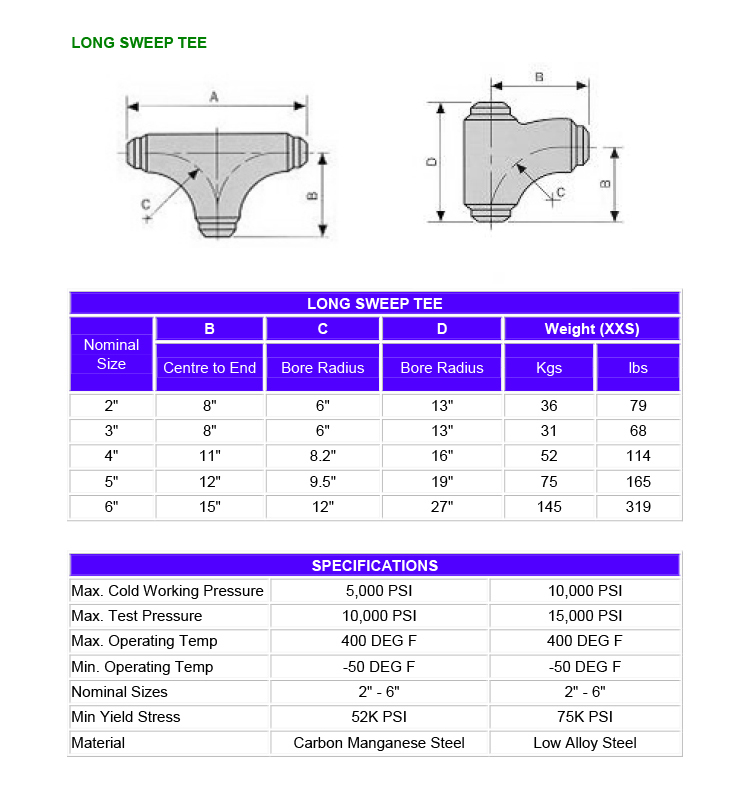

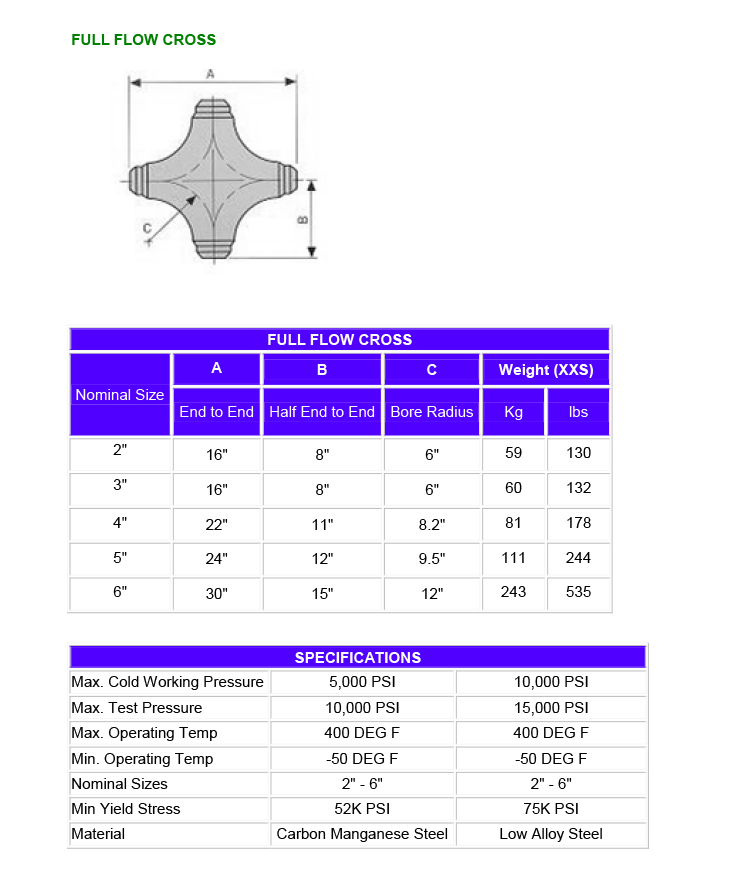

High Pressure Long Sweep Manifold Fittings are manufactured from wrought steel. All fitting are manufactured from AISI 4130 wrought steel forgings. Crosses and Teesare closed die forged to ensure they have a well defined and correctly contoured grain flow, high integrity and uniformity of shape. Elbows (90 degree and 45 degree) are produced from tubulars or hollow bar, hot formed on purpose-made bending machines or forged in closed dies.

A full range of fittings from 2" through to 6" are available with standard pressure ratings of 5,000 psi and 10,000 psi.

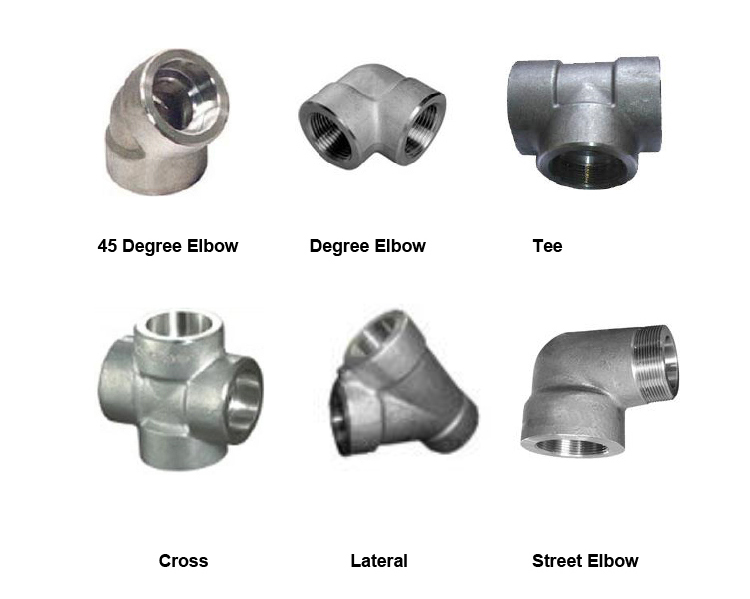

 Forged Fittings

Our fittings and unions come in a variety of classes and material grades for any application. Socket Weld fittings are available in class 3000, 6000 and 9000. Threaded fittings are available in class 2000, 3000 and 6000.

Threaded couplings, reducers, half couplings and caps are available in class 3000 and 6000. Socket Weld couplings, reducers, half couplings and reducer inserts are available in class 3000, 6000 and 9000.

SOCKET WELD & THREADED FITTINGS

Socket weld fittings are available in class 3000, 6000 and 9000. Threaded fittings are available in class 2000, 3000 and 6000.
